Blue®Washer + Agilent Biotek BioStack™
Integration

New software and hardware package that pairs your Blue®Washer with an Agilent BioTek BioStack™ plate stacker for seamlessly automated workflows.

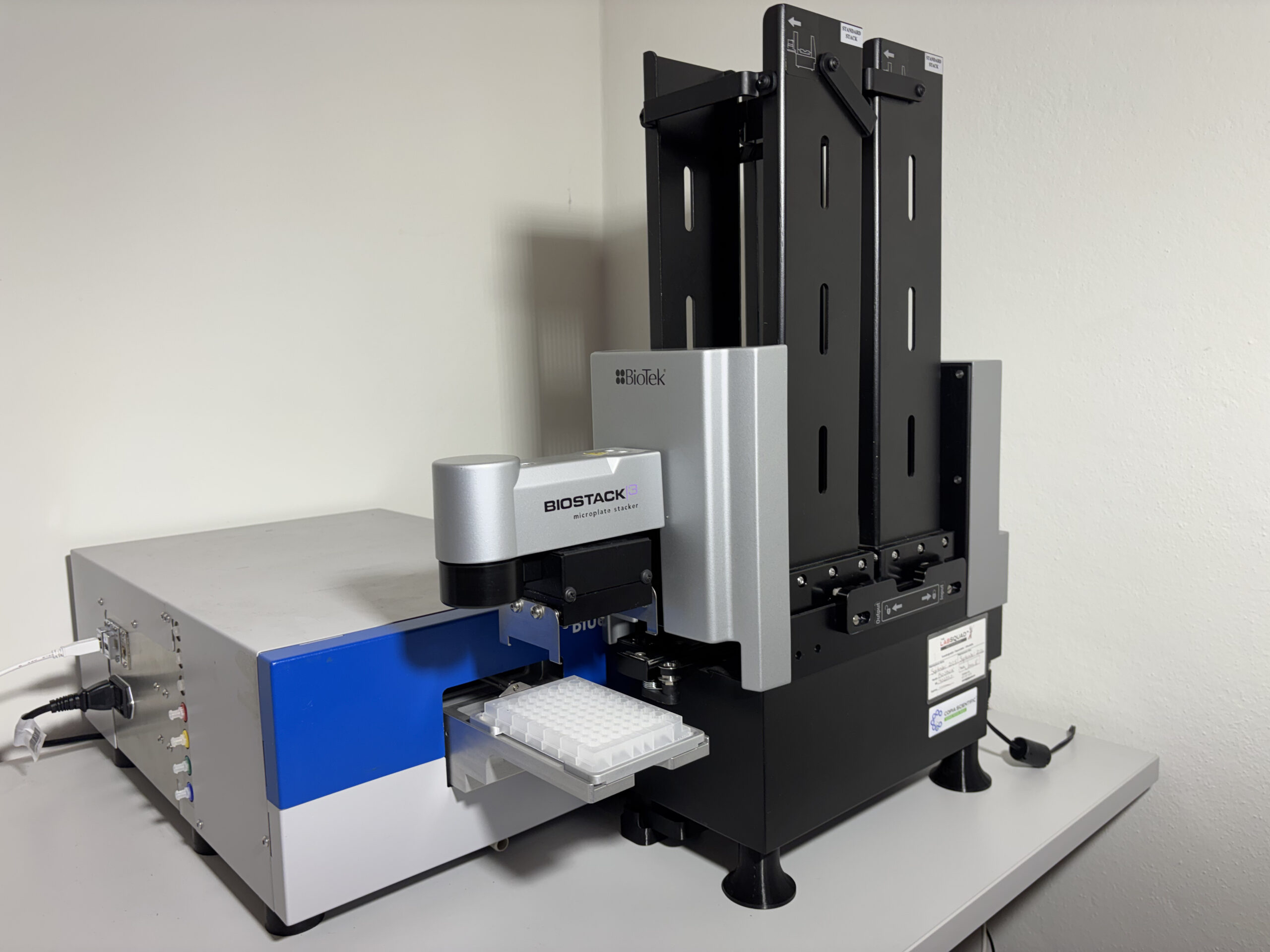

img_4004

40 second sequence

The stacker presents a plate, the washer runs the method, the plate is returned to the output flow. The cycle repeats for every plate in the stack.

Pick
5 s
Process
± 30 s
Return
5 s
0s
5s
35s
40s

1  BioStack™ presents plates from the input stack to the washer.

2  Blue®Washer runs the selected wash workflow.

3  Processed plates move back to the stacker output flow.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Demonstration video.

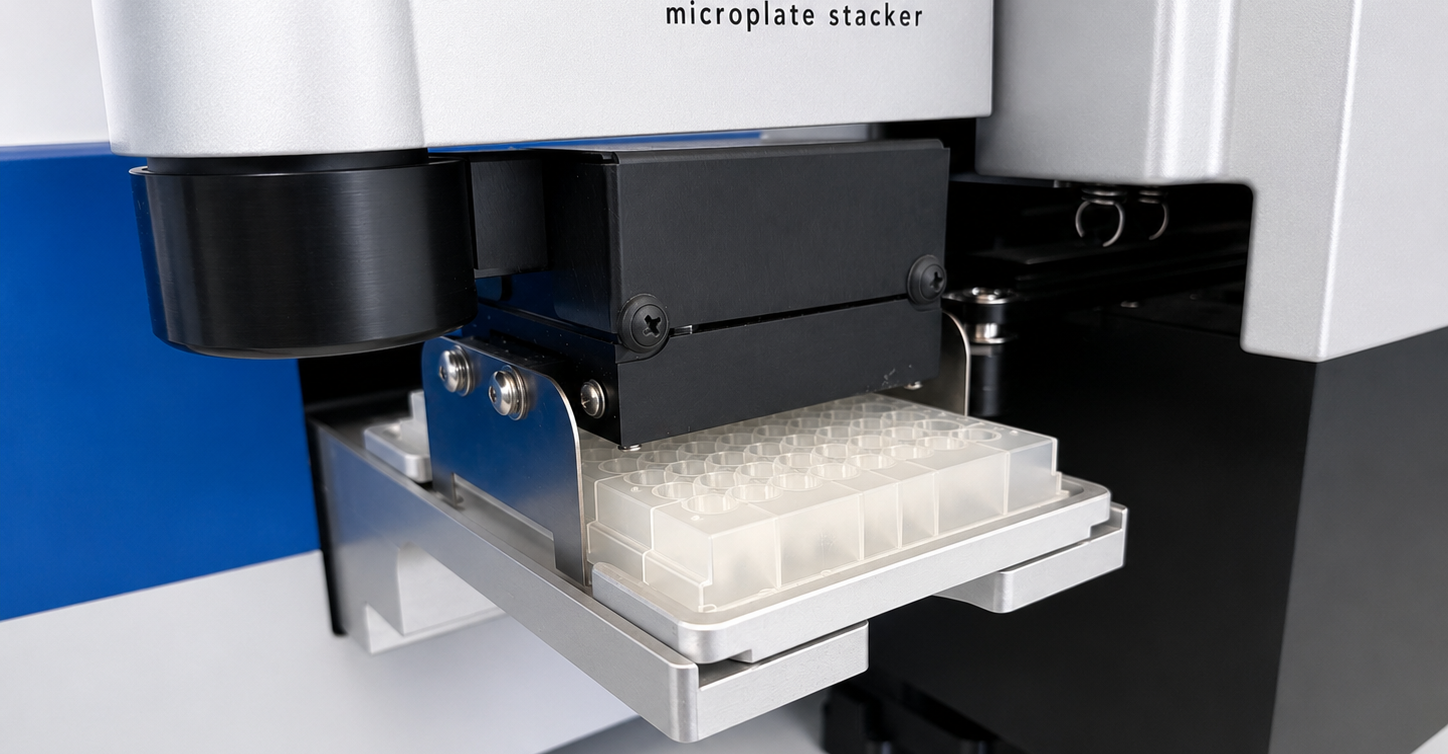

The BioStack gripper setting a 96-well plate onto the Blue®Washer carrier

Total BioStack™ functionality inside Blue®Flow — no separate stacker GUI

Seamlessly operate the Agilent BioStack™ for Blue®Flow graphical user interface.

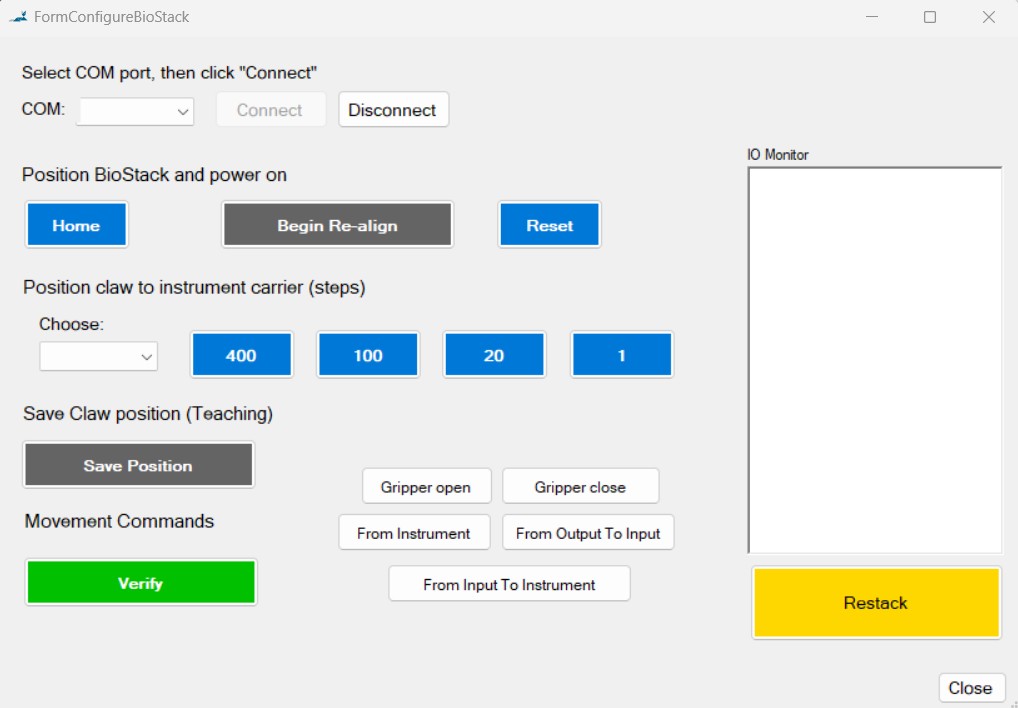

Blue®Flow BioStack configuration screen: COM port connection, homing and re-align controls, claw teaching steps, and movement commands including From Instrument, From Output To Input, From Input To Instrument and Restack
No plate counting

Set a specific number of plates, or set it to auto and let the program process every plate in the stack.

Chained do–while blocks

Several blocks in one program: wash, restack, wash with a second protocol, restack.

Pause without aborting

The run button doubles as a pause control — click during execution to pause, click again to resume.

Features

All-in-One software
  • ·Total functionality inside BlueFlow software
  • ·Stacker commands and wash steps in one method
Simple set-up
  • ·Alignment rack bolts to the BlueWasher
    housing
  • ·Both instruments connect to the same control PC over USB
Compatibility
  • ·Compatible with BioStack™ models 1, 2, 3 and 4
  • ·Works with BlueWasher and
    BlueWasher XL
  • ·Works with all plate formats

“Simply amazing!”

— Scientist, Pharmaceutical Company
San Diego USA

When asked how the newly-developed stacker integration has been working for her.

Specifications

Carrier
Machined aluminum 6082-T6 (EN AW-6082 / 3.2315), black anodized Type II, Ra ≤ 1.6 µm, Z-coupling
Rack
BlueWasher-BioStack™ Rack v2.0 — stacker alignment hardware, stacker platform, T-form fixing part. (PETG; stainless steel)
Compatibility
Blue®Washer, Blue®Washer XL · all plate formats
Stacker models
Agilent BioTek BioStack™ 1, 2, 3 and 4
Connection
USB A-B, both instruments to control PC
Software and operation
BioStack™ module for Blue®Flow; stacker commands written into the same method as the wash steps, with automatic plate detection and chained do–while blocks
